SD-G-BT40 Series Wire Code Profile Processing Center - Technical Parameters and Configuration Sheet
1、 Machine Introduction:
The SD-G-BT40 series model is a large-scale wire code profile processing center specially designed for customers; The body adopts a cast iron bed structure; Equipped with Shengjie 24T disc cutter library; The tool changing speed is 2 seconds, greatly improving production efficiency; The motion mode is to move the Y-axis workbench forward and backward, the X-axis machine head moves left and right, and the Z-axis spindle moves up and down. Adopting the Huazhong CNC system, servo motors are used for the YZ axis, linear motors with wire codes are used for the X axis, precision grade linear guides are used for the three axes, precision grade ball screws are used for the YZ axis, German couplings, advanced spindle refrigeration system, automatic lubrication system, and coolant circulation water spray system, ensuring higher machining accuracy, speed, and stability; Especially suitable for precision engraving, milling, drilling, and tapping of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
An additional fourth axis of rotation can be added< Br/>
.jpg)

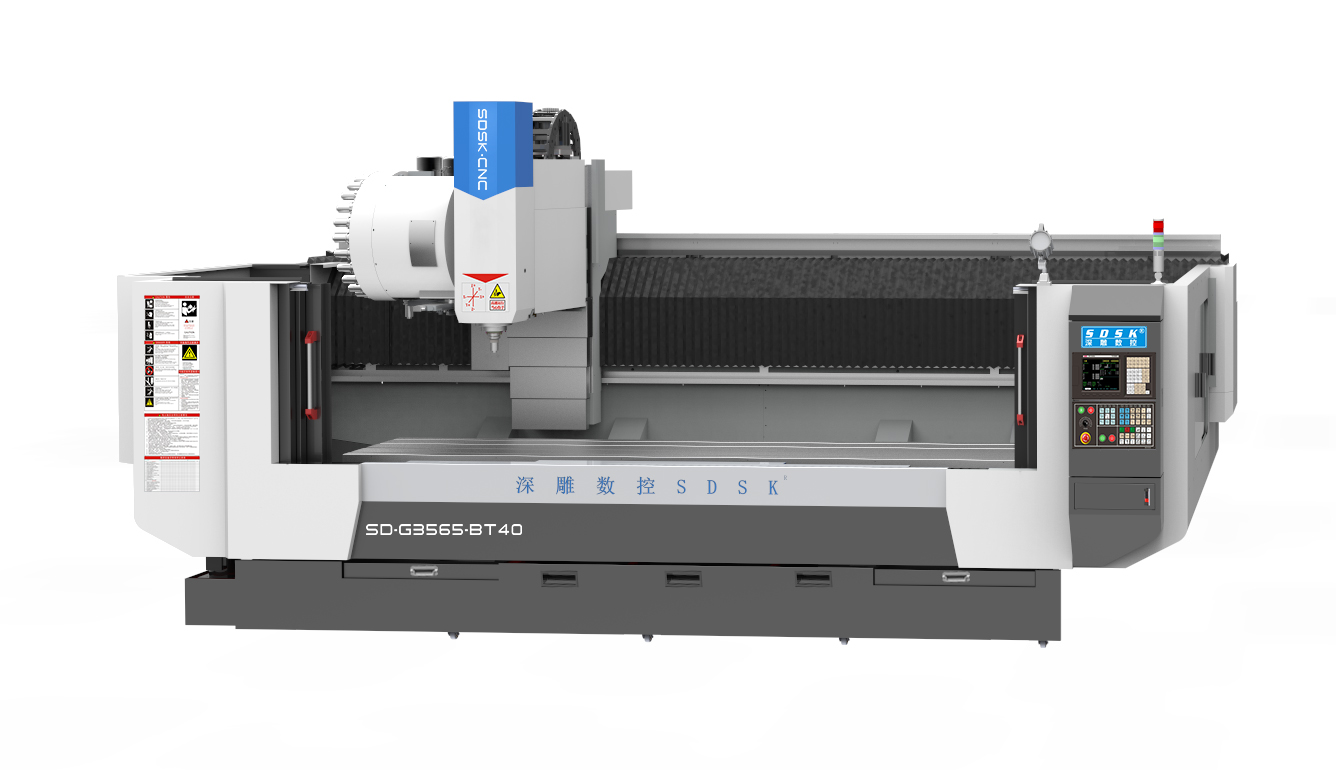

(Similar in appearance, subject to actual product)
2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Huazhong CNC system/YZ axis 4.4KW/2.9KW servo motor/7.5KW spindle servo drive
full set
Wuhan
*Linear motor with wire code for X-axis (Singapore)
*Equipped with high-tech drive; (Israel)
*Renishaw grating ruler (HK-0400-0002) reading head (UK)
full set
&Nbsp;
Taiwan TBI precision grade (Y50mm, Z40mm) ball screw for Y/Z axis
full set
Taiwan
Use Taiwan Shangyin/Intime for XYZ axis& Nbsp; Precision grade (35mm) linear guide rail
full set
Taiwan
Taiwan Dayue Straight Spindle BT40-140AS-12000 Short Nose
1 unit
Taiwan
Taiwan Shengjie 24 position arm type knife magazine
1 set
Taiwan
Cast iron bed body (HT250)
1 set
self-control
Cast iron mechanical parts (HT250)
1 batch
self-control
Outer cover: 2mm steel plate, powder coating (stainless steel water tank)
full set
self-control
Distribution cabinet constant temperature system (Reid)
1 set
Dongguan;
Schneider Electrical Accessories (Schneider)
1 batch
Tianjin
Import GMI; P-grade angular contact paired bearings
full set
Taiwan
Spindle oil cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Yupu)
1 set
Guangzhou
Knife setting instrument (Shenzhen Jingdiao )
1 unit
self-control
X-axis with organ cover/YZ axis with steel plate cover
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
2 sets
Zhejiang
Water spray device
1 set
self-control
Water pump (Snell)
1 unit
Changzhou
Chain plate automatic slag discharge machine (note: optional)
nothing
Shenzhen
Machine tool accessories
1 set
Shenzhen
BT40 Knife Handle/Complete Set of Reduced Nipple (Three in One)
5
Shenzhen
3、 Main technical parameters of the equipment: (unit: mm)
model
SD-G3565-BT40
SD-G4065-BT40
SD-G4565-BT40
External dimensions
5350 in length, 2950 in width, and 3000 in height
5850 in length, 2950 in width, and 3000 in height
6530 in length, 2950 in width, and 3000 in height
Workbench size
X3500 * Y600 (T-slot)
X4000 * Y600 (T-slot)
X4500 * Y600 (T-slot)
Spindle nose end to countertop
seven hundred and fifty
seven hundred and fifty
seven hundred and fifty
X/Y/Z stroke
3550 * 720 * 650
4050 * 720 * 650
4550 * 720 * 650
Maximum idle speed XYZ
X60m/min
Y48m/min
Z40m/min
X60m/min
Y48m/min
Z40m/min
X60m/min
Y48m/min
Z40m/min
Maximum processing speed
12m/min
12m/min
12m/min
control system
Huazhong CNC system (semi closed loop)
Huazhong CNC system (semi closed loop)
Huazhong CNC system (semi closed loop)
servo system
YZ AC servo
X High Tech Drive;
YZ AC servo
X High Tech Drive;
YZ AC servo
X High Tech Drive;
System resolution
zero point zero zero two
zero point zero zero two
zero point zero zero two
Three axis verticality
0.015mm
0.015mm
0.015mm
Whole machine positioning accuracy
0.02mm
0.02mm
0.02mm
Localization accuracy
Within 300 mm± 0.01mm
Within 300 mm± 0.01mm
Within 300 mm± 0.01mm
Repetitive positioning accuracy
0.005mm
0.005mm
0.005mm
Number of spindles
1
1
1
Spindle servo drive power
7.5KW/piece
7.5KW/piece
7.5KW/piece
Spindle speed
12000 rpm/min
12000 rpm/min
12000 rpm/min
Clamping tool handle
BT40
BT40
BT40
Arm type tool magazine
24T
24T
24T
Knife changing method
automatic
automatic
automatic
Knife alignment method
automatic
automatic
automatic
Loading height
600mm
600mm
600mm
The countertop bears a load
2000Kg
2000Kg
2000Kg
Rated voltage
380V/50HZ
380V/50HZ
380V/50HZ
Maximum power of the entire machine
21KW
21KW
21KW
Overall weight
10500Kg
12500Kg
14500Kg
Unit price
Including tax and freight
&Nbsp;
&Nbsp;
&Nbsp;
4、 Standard configuration and accessories for the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
Direct spindle BT40-140AS-12000 short nose
twelve
Rigid tapping function
three
1
2
3
4
