Machine Introduction:

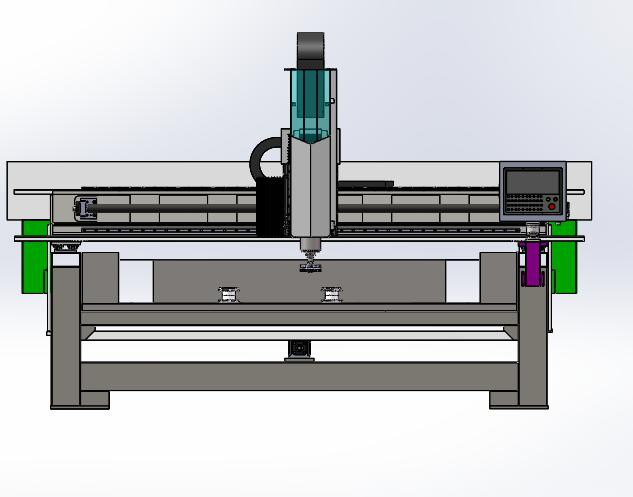

The SDSK3612 model is a CNC large fully functional glass processing machine specially designed for customers; Moving column movement mode; The machine workbench is fixed, the Y-axis gantry moves forward and backward, the entire X-axis head moves left and right, and the Z-axis head moves up and down< Br/>
The body adopts a steel structure, and the three-axis adopts Taiwan Shangyin ball screw, Taiwan Shangyin linear guide rail, German coupling, AC servo motor, advanced spindle cooling system, automatic lubrication system, and water circulation cooling liquid multi-point spray system< Br/>
Ensuring higher machining accuracy, speed, and stability; Specially suitable for precision punching, grinding, chamfering, polishing and other irregular processing of various types of glass cover plates, capacitive screen glass panels, ceramics, etc< Br/>
Number
Specification Description
quantity
one
Machine cover: 2mm steel plate surface powder spraying (stainless steel water tank)
1 set
two
Steel structure bed
1 set
three
Aluminum workbench dimensions: 3600 in X direction, 1200 in Y direction, thickness 25
1 set
four
X. AC servo motor for Y.Z axis (Z with brake)
set
five
Taiwan Shangyin C-grade linear guide rail for XYZ axis
1 set each
six
X. Taiwan Shangyin C5 grade ball screw for Y.Z axis
1 set each
seven
CNC system NC65 (with CCD)
1 set
eight
inverter
1 set
nine
Schneider Electric Accessories
1 batch
ten
Electric spindle 3000-18000 rpm, 18000r/min, diameter 150mm, 8KW (optional 20KW), pneumatic tool change, BT
Knife handle
1 unit
eleven
10 position straight row tool magazine (optional)
nothing
twelve
BT40 knife handle
Two
thirteen
Electronic handwheel
1 unit
fourteen
Spindle water cooler
1 unit
sixteen
NSK P4; Grade angular contact bearing
6 sets
eighteen
Knife alignment instrument
1 set
nineteen
X/Y/Z axis with three proof cloth organ cover
1 set each
twenty
X/Y/Z axis plastic drag chain
1 set each
twenty-one
Automatic lubrication oil pump 2 liters
1 set
twenty-two
water pump
1 set
twenty-four
Jinhuanyu Electric Wire
1 batch
twenty-six
Toolbox and machine tool accessories
1 set
twenty-seven
Control box constant temperature system
1 set
twenty-eight
LED work light alarm system
1 set each
twenty-nine
Multipoint sprinkler system
1 set
thirty
Pneumatic device
3 sets
thirty-one
Glass suction cup
6 sets
Main technical parameters of the equipment:
Model SDSK3612
External dimensions long; 4500 * width; 2300 * High; 2300 (mm)
X/Y/Z; Travel 3620 * 1220 * 300 (mm)
Maximum idle speed 30000mm/min
Maximum processing speed 12000mm/min
Control system deep carving CNC system
Servo system AC servo
System resolution 0.001
Three axis verticality 0.02mm
Positioning accuracy; 0.025mm
Repetitive positioning accuracy of 0.005mm
Number of spindles 1
Spindle power 8KW; (Optional 20KW)
Knife changing method pneumatic
Spindle speed 3000-1800r/min
Clamping tool handle; BT40 maximum; 25mm
Automatic knife alignment method
Can be loaded at a height of 250mm
The countertop can withstand a load of 500Kg
Rated voltage 380V/50Hz
The maximum power of the entire machine is 15KW
Total weight 4500Kg
The triple waterproof technology of waterproof screw and guide rail effectively prevents rust
